Click here for User Manual (PDF)

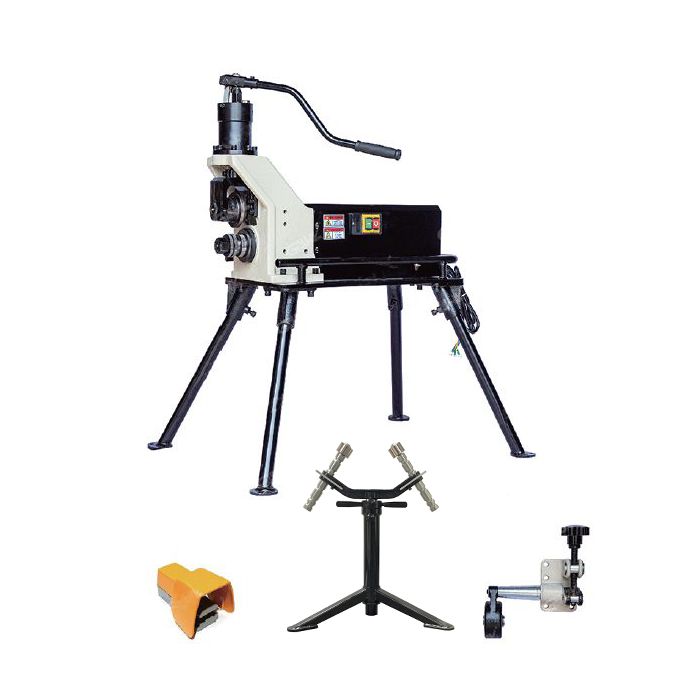

RGEH-840 with Standard Base

FEATURES:
•Hydraulic Roll Grooving Machine for 1” to 12" pipe
•Capacity: 1” to 12” | Max pipe wall thickness: .314 (8 mm)
•1” to 8” Schedule 10/40 Steel Pipe | 10” to 12” Schedule 10/20 Steel Pipe
•Single Phase 1100 Watt 23 rpm Motor
•Pipe Stabilizer designed to prevent sway for 8" and larger pipe sizes
•Weight: 200 lbs

BENEFITS:
•High performance gear reducing motor
•Integrated hydraulic feeding pump & groove depth lock nut
•Specially designed roll set prevents flares on pipe ends

INCLUDES:
•1” to 1-1/2” Drive Roller
•2” to 3” Drive Roller
•3-½” to 6” Drive Roller
•8” to 12” Driver Roller
•1” to 1-1/2” Groove Roller
•2” to 6” Groove Roller
•8” to 12” Groove Roller
•Foot Switch
•Pipe Stand
•Pipe Stabilizer
•Standard Base with four legs
