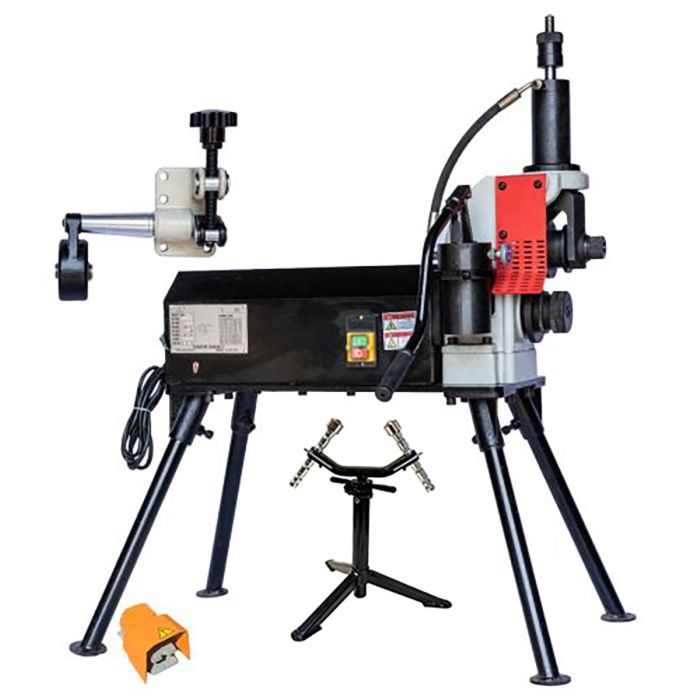

ARGCO RCEH-1240 Electric Hydraulic Roll groove machine (2" to 12" Schedule 40)
•Best-in-Class High Performance Plug & Play Roll Grooving Machine with Integrated Motor
•2" to 12" Schedule 40 pipe
•Quiet 23 rpm motor
RCEH-1240
FEATURES:
Capacity: 2” to 12” Schedule 40 pipe | Max pipe wall thickness: .393” (10 mm)
•Single Phase 1100 Watt 23 rpm Motor
•Weight: 290 lbs
BENEFITS:
•High performance gear reducing motor
•Integrated hydraulic feeding pump & groove depth lock nut
•Specially designed roll set prevents flares on pipe ends
•Split type hydraulic system prevents oil leakage & extends motor life
•Pipe Stabilizer designed to prevent sway for larger pipe sizes
•Easily adjust between pipe sizes & schedules
•Swap out drive rollers in 30 seconds
INCLUDES:
•1” to 1-1/2” Drive Roller
•2” to 3” Drive Roller
•3½” to 6” Drive Roller
•8” to 12” Driver Roller
•1” to 1½” Groove Roller
•2” to 3” Groove Roller
•3½” to 6” Groove Roller
•8” to 12” Groove Roller
•Foot Switch
•Pipe Stand
•Pipe Stabilizer
•Standard Base with four legs
Click here for Technical Data (PDF)
Weight | 326.000000 |
---|
