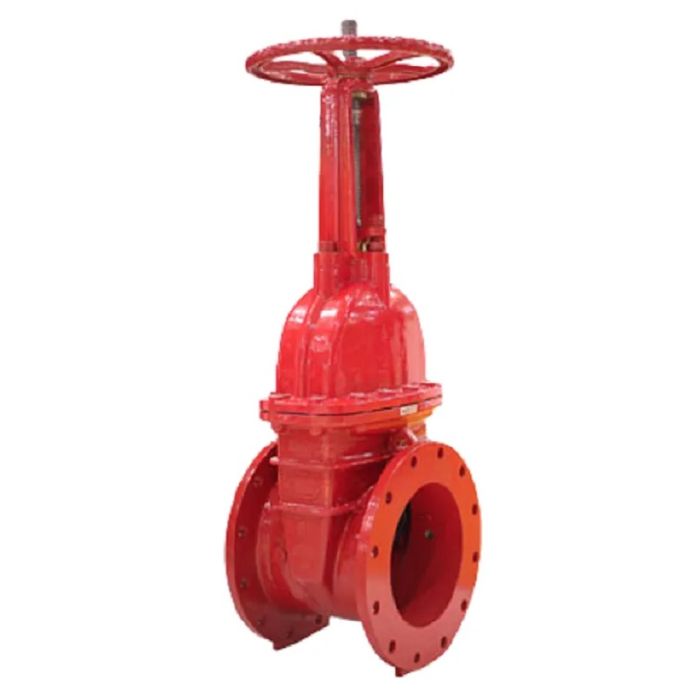

Fire Protection OS&Y Gate Valve D.I. Body Flanged 10" UL/FM
SKU
6520265
OS&Y Gate Valve
UL Listed, FM Approved
4 Per Pallet. Price Upon Request
UL Listed, FM Approved
4 Per Pallet. Price Upon Request
Weight (ea): 325.6 lbs
OS&Y Gate Valve Ductile Iron Body Flanged
UL Listed / FM Approved
•Design Standard: AWWA C515
•Connection Ends: Flange to ASME B16.1 CL 125.
•Stem drive by keys, parallel or diagonal square or flat head.
•Working Pressure: 300PSI
•Temperature Rating: 175° F
•Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
Click here for Technical Data (PDF)
UL Listed / FM Approved
•Design Standard: AWWA C515
•Connection Ends: Flange to ASME B16.1 CL 125.
•Stem drive by keys, parallel or diagonal square or flat head.
•Working Pressure: 300PSI
•Temperature Rating: 175° F
•Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550
Click here for Technical Data (PDF)
Technical data are not available for this product.
| Weight | 325.550000 |
|---|
