LEVER TYPE Butterfly Valve 5" Grooved 300#
SKU
6520224
IRRIGATION Butterfly Valve 5" Grooved Lever Type 300PSI
Weight (ea): 18.3 lbs

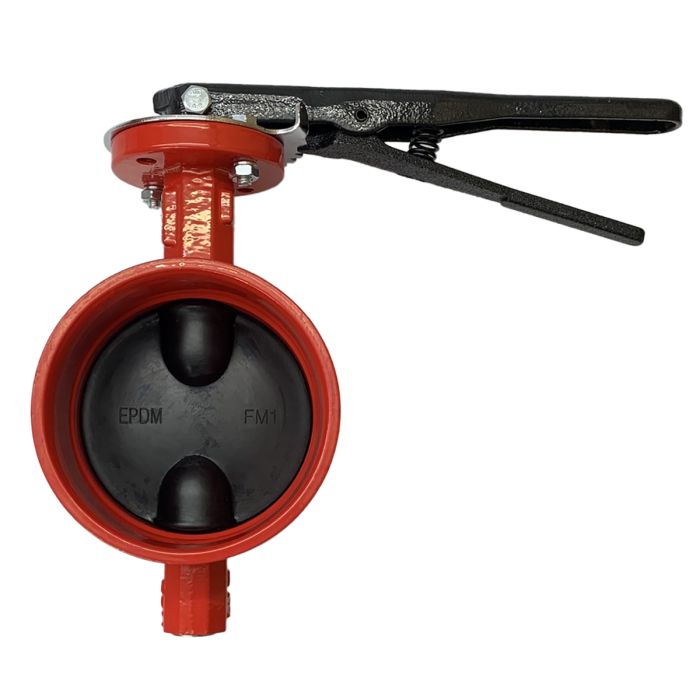

Grooved Butterfly Valve with Lever
Available Sizes: : 2 1/2" ~ 8"
Working Pressure : 300 PSI
Max. Test Pressure : 450 PSI
Max. Working Temp : 250°F
MATERIALS:
Body : Ductile Iron with Epoxy coating
Disc : Ductile Iron EPDM
Stem : Stainless steel
Throttling Plate : Zinc plated steel
Handle : Carbon steel with epoxy coating or casting
Click here for Technical Data (PDF)
Click here for Installation Instructions (PDF)
Available Sizes: : 2 1/2" ~ 8"
Working Pressure : 300 PSI
Max. Test Pressure : 450 PSI
Max. Working Temp : 250°F
MATERIALS:
Body : Ductile Iron with Epoxy coating
Disc : Ductile Iron EPDM
Stem : Stainless steel
Throttling Plate : Zinc plated steel
Handle : Carbon steel with epoxy coating or casting
Click here for Technical Data (PDF)
Click here for Installation Instructions (PDF)
California Prop 65 WARNING
WARNING: This product can expose you to chemicals and or materials that are recognized by the State of California to cause cancer or reproductive harm. For more information, go to www.p65warnings.ca.gov
Technical data are not available for this product.
| Weight | 18.290000 |
|---|
No videos are available for this product.
