Seismic Sway Brace Pipe Attachment(Large)1-1/4"Brace, 4"Pipe(PHD 015)
SKU
2550616-400
Seismic Sway Brace Pipe Attachment(Large)1-1/4"Brace, 4"Pipe(PHD 015)
Weight (ea): 1.7 lbs

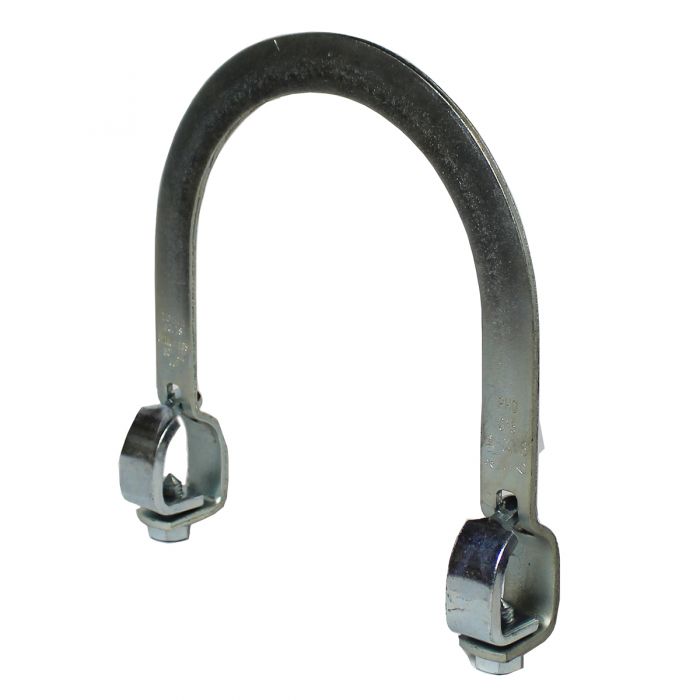

Seismic Sway Brace Pipe Attachment(Large) (PHD 015)
Function: Designed for bracing pipe against sway and seismic disturbance. The pipe attachment component of a sway brace system used in conjunction with a PHD Manufacturing structural attachment fitting, and joined together with a bracing pipe element forms a complete sway brace assembly. Sway brace assemblies are intended to be installed in accordance with NFPA 13 and the manufacturer’s installation instructions. Size: Pipe size 2-1/2” thru 8”. Material: Carbon steel Finish: Electro-galvanized
UL listed, FM Approved
Click here for Technical Data (PDF)
Function: Designed for bracing pipe against sway and seismic disturbance. The pipe attachment component of a sway brace system used in conjunction with a PHD Manufacturing structural attachment fitting, and joined together with a bracing pipe element forms a complete sway brace assembly. Sway brace assemblies are intended to be installed in accordance with NFPA 13 and the manufacturer’s installation instructions. Size: Pipe size 2-1/2” thru 8”. Material: Carbon steel Finish: Electro-galvanized
UL listed, FM Approved
Click here for Technical Data (PDF)
Technical data are not available for this product.
| Weight | 1.700000 |
|---|
