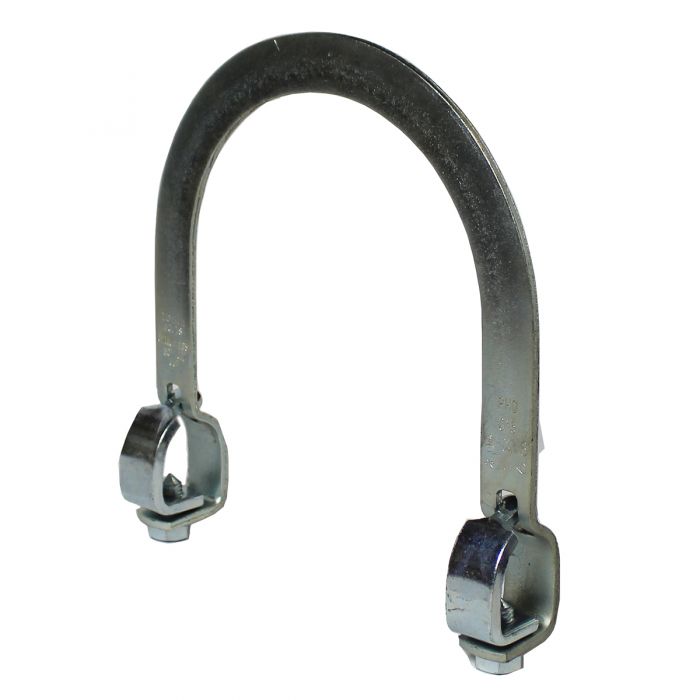

Seismic Sway Brace Pipe Attachment(Large)1-1/4"Brace, 3"Pipe (PHD 015)

Seismic Sway Brace Pipe Attachment(Large) (PHD 015)


Function:
Designed for bracing pipe against sway and seismic disturbance. The pipe attachment
component of a sway brace system used in conjunction with a PHD Manufacturing structural attachment fitting, and joined together with a bracing pipe element forms a complete sway brace assembly. Sway brace assemblies are intended to be installed in accordance with NFPA 13 and the manufacturer’s installation instructions.
Size: Pipe size 2-1/2” thru 8”.
Material: Carbon steel

Finish: Electro-galvanized
UL listed, FM Approved

Click here for Technical Data (PDF)
