Purlin Clamp Plain 3/8" (UL/FM)
Purlin Clamp Plain 3/8" (UL/FM)
SKU 2550067
37157 In stock
UL Listed & FM Approved
$3.96 each
$94.00 case of 25
$3.76 each
$3.76 each
Weight (ea): 0.8 lbs
Description
Downloads
Video
More Information

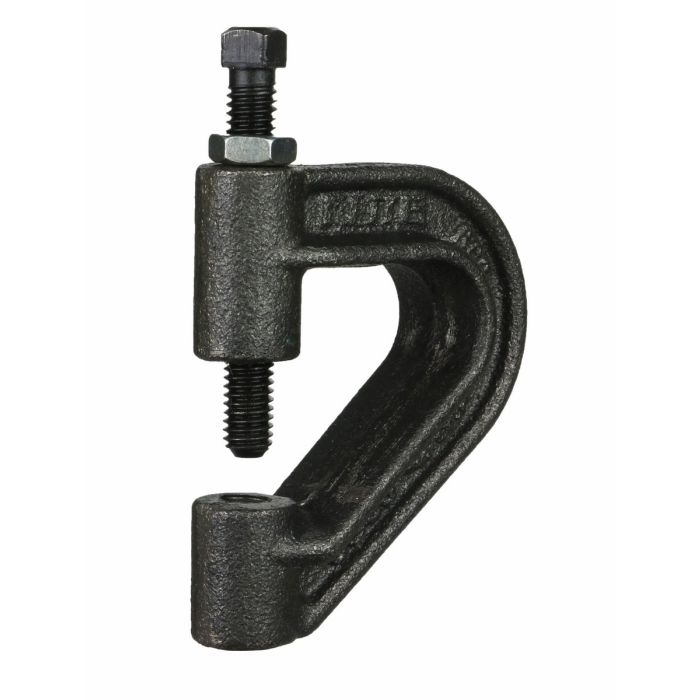

Purlin Clamp (Malleable Iron-Plain)
(Cross Reference PHD Model 290)
•3/8” rod size
• Also available zinc plated
• Structural attachment to lower flange of metal beams or purlins with 45° flanges up to 2” long and 90° flanges up to 1-1/2” high
• Set screw made of hardened steel
• Conforms with Federal Specification WW-H-171 (Type 23),
Manufacturers Standardization Society ANSI/MSS-SP-58
(Type 23); install in accordance with ANSI/MSS-SP-69
(Cross Reference PHD Model 290)
•3/8” rod size
• Also available zinc plated
• Structural attachment to lower flange of metal beams or purlins with 45° flanges up to 2” long and 90° flanges up to 1-1/2” high
• Set screw made of hardened steel
• Conforms with Federal Specification WW-H-171 (Type 23),
Manufacturers Standardization Society ANSI/MSS-SP-58
(Type 23); install in accordance with ANSI/MSS-SP-69
No videos are available for this product.
| Weight | 0.820000 |
|---|
