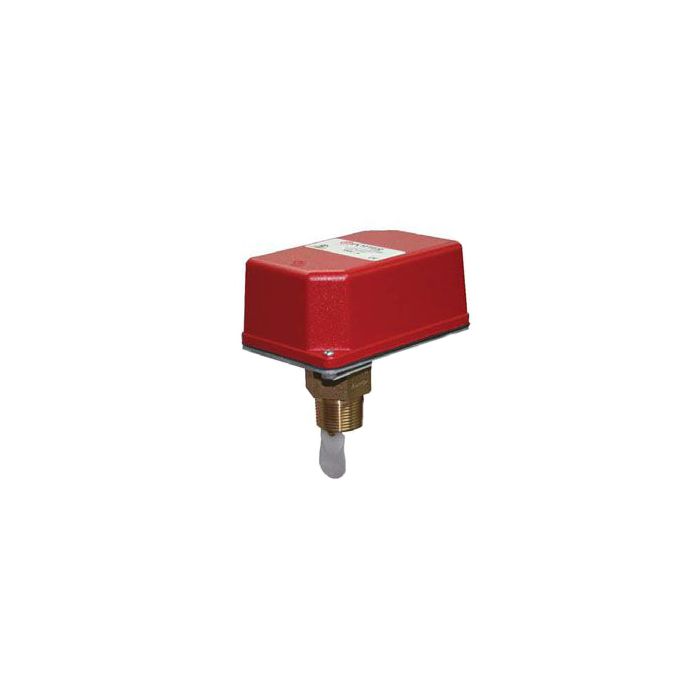

Potter VSRS 1" to 2" Water Flow Switch (WFDTH)
SKU
7710007
Potter VSRS 1" to 2" Water Flow Switch (WFDTH)
Weight (ea): 4 lbs
VSRS
Vane Type Waterflow Alarm Switch with Retard (for small pipe)
Usage: Listed plastic, copper and schedule 40 iron pipe. Fits pipe sizes - 1", 1 1/4", 1 1/2") and 2"
UL, CUL and CSFM Listed, FM Approved, LPCB Approved, For CE Marked (EN12259-5) / VdS Approved model use VSR-EU
Service Pressure: 450 PSI (31 BAR) - UL
Flow Sensitivity Range for Signal: 4-10 GPM (15-38 LPM) - UL
Maximum Surge: 18 FPS (5.5 m/s)
Cross Reference: System Sensor WFDTH
Click here for Technical Data
Usage: Listed plastic, copper and schedule 40 iron pipe. Fits pipe sizes - 1", 1 1/4", 1 1/2") and 2"
UL, CUL and CSFM Listed, FM Approved, LPCB Approved, For CE Marked (EN12259-5) / VdS Approved model use VSR-EU
Service Pressure: 450 PSI (31 BAR) - UL
Flow Sensitivity Range for Signal: 4-10 GPM (15-38 LPM) - UL
Maximum Surge: 18 FPS (5.5 m/s)
Cross Reference: System Sensor WFDTH
Click here for Technical Data
California Prop 65 WARNING
WARNING: This product can expose you to chemicals and or materials that are recognized by the State of California to cause cancer or reproductive harm. For more information, go to www.p65warnings.ca.gov
Technical data are not available for this product.
| Weight | 3.950000 |
|---|
