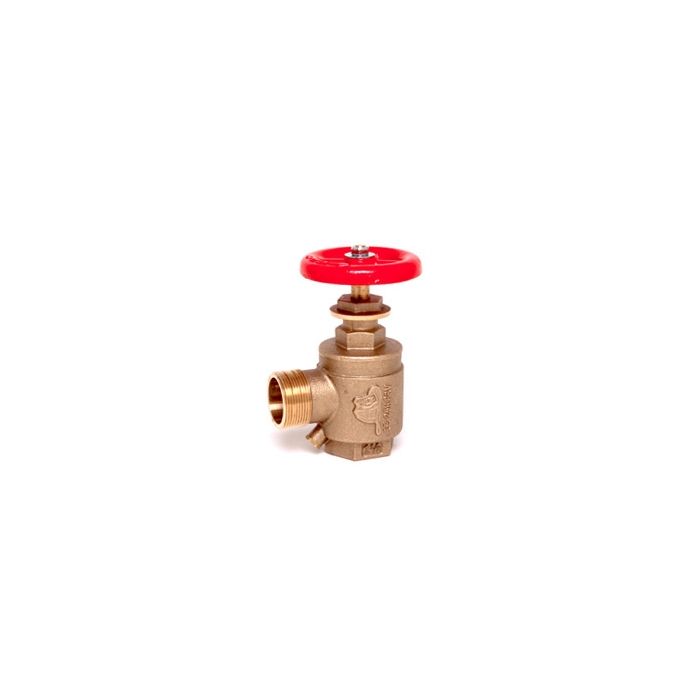

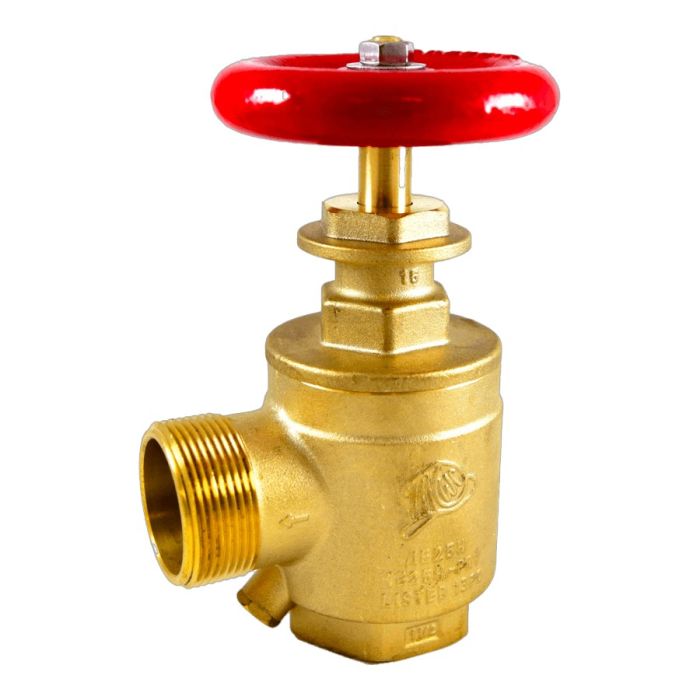

Fire Hose Angle Valve 1-1/2" F (NPT) x M (NST) UL,FM
1-1/2" (F) NPT x 1-1/2" (M) Angle Hose Valve
Cast Brass
300 PSI (2070 KPa) pressure tested approved valve.
Heavy Duty 1-1/2" (38 mm) angle hose and hydrolator valve.
Automatically drains and vents, safeguarding against hose deterioration.
O-ring packing and red cast handle.
Aluminum Hand Wheel
(UL/ULC/FM)
Dimensions:
A = 4″ (100mm)
B = 2 3/4″ (69.85mm)
C = 8″ (OPEN) (200mm)
C = 7″ (CLOSED) (175mm)
WEIGHT: 4.95 lbs (2.25 Kg)
WORKING PRESSURE: 300 lb (2070 Kpa)
Click here for Technical Data
Cast Brass
300 PSI (2070 KPa) pressure tested approved valve.
Heavy Duty 1-1/2" (38 mm) angle hose and hydrolator valve.
Automatically drains and vents, safeguarding against hose deterioration.
O-ring packing and red cast handle.
Aluminum Hand Wheel
(UL/ULC/FM)
Dimensions:
A = 4″ (100mm)
B = 2 3/4″ (69.85mm)
C = 8″ (OPEN) (200mm)
C = 7″ (CLOSED) (175mm)
WEIGHT: 4.95 lbs (2.25 Kg)
WORKING PRESSURE: 300 lb (2070 Kpa)
Click here for Technical Data
California Prop 65 WARNING
WARNING: This product can expose you to chemicals and or materials that are recognized by the State of California to cause cancer or reproductive harm. For more information, go to www.p65warnings.ca.gov
Technical data are not available for this product.
| Weight | 4.920000 |
|---|---|
| Size | 1-1/2" |
No videos are available for this product.
